Contitech Double Convoluted Air Bellow FD76-14 CR G1/2 Air Inlet For Industries

Contitech Double Convoluted Air Bellow FD76-14 CR G1/2 Air Inlet For Industries

GUOMAT 2B6×2T Specification

2B6×2T Other OEM Number

• ContiTech: FD 76-14 1/2 M10
• ContiTech: FD 76-14 DS G1/2
• ContiTech: FD 76-14 DS G1/2 CR
• ContiTech: FD 76-14 DS CR G1/2
• ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
• ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
• Norgren: PM/31062 / PM 31062 / PM31062
• Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
• Dunlop FR: SP1482
• Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
• Double Convoluted Air Spring 2B180-115 D185
• Double Convoluted Air Spring 2B180-115 D185
• Replaces These Air Springs (Air Bellows)

Product Operation

1. Due to their flexible construction the mounting of Air Bellows is less critical than with conventional pneumatic cylinders, which normally require rigid fixing and guidance and provide only one axis within a limit of 15° between faces. Additionally the axial location of the end plates may be off set by up to 10 mm.
2. When pressurised Air Bellows will follow the line of leased resistance. Accordingly care must be taken with the mounting geometry in angled applications.
3. When depressurised Air Bellows will fit in to surprisingly small spaces, especially useful for clamping or moving awkwardly shaped or very heavy loads.
4. In operation it is recommended that the unit is not allowed to "bottom out" or achieve its maximum height. Various mechanical devices may be employed to achieve this.

FAQ

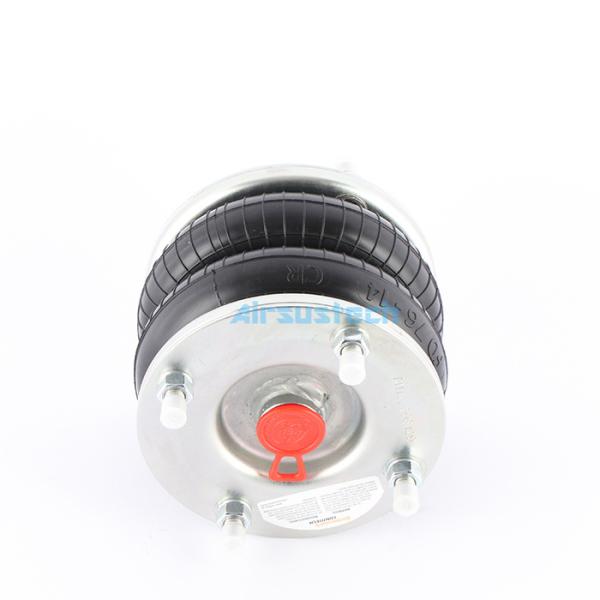

The Picture of The Product

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.


Factory Workshop
