FS 40-6 Air Bellow Single Convoluted Contitech Air Shock Absorption G 1/8 Air Inlet
Product Information
| Cover Plate Top Cover Plate Diameter: 90mm Bottom Cover Plate Diameter: 90mm |
| Gas Hole/Air Hole/Gas Fitting Gas Hole: G1/8 |
| Nut / Blind Nut Top Cover Plate Screw (Nut) Tooth: M8X1.25 Distance between Top Cover Plate Screws and Air Holes: 20mm Bottom Cover Plate Screw (Nut) Tooth: 2XM8X1.25 Screw Center Distance of Bottom Cover Plate: 20mm |
| Rubber Bellows Rubber Bellows MAX Diameter: 145 mm
The Working Stroke: MAX 110 mm to MIN 50 mm
Maximum Height: 110 mm
Minimum Height: 50mm |
Cross References
FS 40-6 1/8 M8, FS 40 6 1/8 M8
SP1B04, SP 1B04, SP1B 04
WBE100-E1, WBE 100-E1, WBE100 E1, WBE100E1
Single Convoluted Bellows
| OEM number | Max diameter (mm) | Max stroke (mm) | Min height (kN) | Max height (kN) | Standard air inlet |
| Force with p = 8 bar |
| FS 40-6 CI | 145 | 60 | 6.9 | 2.4 | G 1/8 |
| FS 50-5 CI | 150 | 44 | 9.0 | 2.2 | G 1/4 |
| FS 70-7 CI | 165 | 64 | 9.9 | 5.2 | G 1/4 |
| FS 100-10 CI | 210 | 94 | 14.7 | 1.6 | G 3/4 |
| FS 120-9 CI | 215 | 85 | 17.7 | 6.6 | G 3/4 |
| FS 120-10 CI | 231 | 99 | 19.5 | 4.6 | G 3/4 |
| FS 120-12 CI | 235 | 119 | 18.7 | 7.2 | G 3/4 |
| FS 200-10 CI | 250 | 89 | 23.8 | 9.1 | G 3/4 |
Air Spring Advantages
- Excellent materials
- Effective shock
- In situ installation
- Comfortable and stable
- Long life
- Slove the abnormal noise
GUOMAT Support and Services
- Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
- We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
- Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

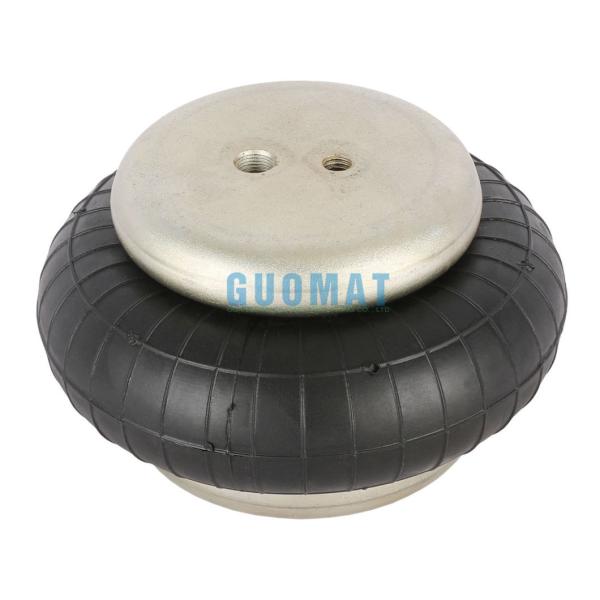

The Detailed Picture of Air Spring
GUOMAT Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
Factory Workshop
