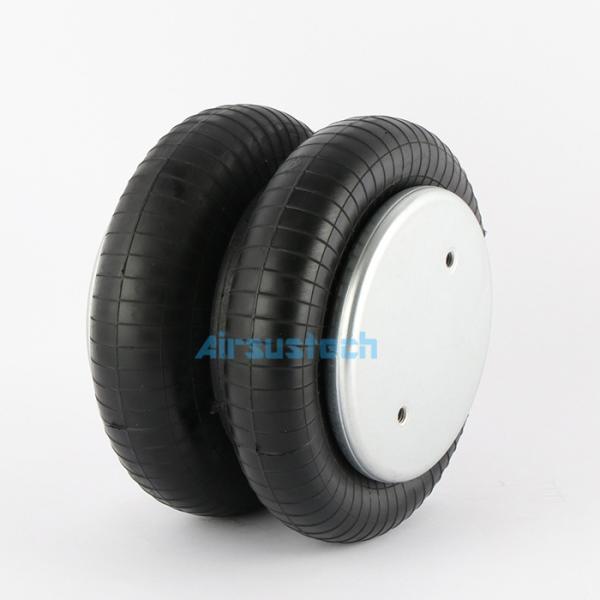

GUOMAT Air Spring 2B6910 Cross Firestone W01-358-6910 Double Convoluted Air Bellow
Product Specification
| Top Cover Plate Diameter | 160 mm |
| Screw Center Distance of Top Cover Plate | 89 mm |
| Bottom Cover Plate Diameter | 160 mm |
| Screw Center Distance of Bottom Cover Plate | 89 mm |
| Top Cover Plate Screw(Nut) Tooth | 3/8-16 UNC |
| Bottom Cover Plate Screw(Nut) Tooth | 3/8-16 UNC |
| Air Hole | 1/4 NPTF |
| Rubber Bellow Dia | 224 mm |
| Minimum Height | 75 mm |
| Maximum Height | 260 mm |
OEM NO.
W01-358-6910, W01 358 6910, W013586910
WO1-358-6910, WO1 358 6910, WO13586910
KF218-6910, KF218 6910, KF2186910
FD 200-19 320, FD 200 19 320, FD20019320
6325, 4320
M3501
A812719, AZ812719
Sc2011
554783C1
S8768, 458433
1003586910C
57006910
133128
1371
AS-0001, AS-0156G
Supports And Services
From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.
- Global Manufacturing and Sales Facilities offer our customers:
- Highly Trained Distribution Network
- State-of-the Art Engineering Capabilities
- Custom Solution Development
- Customer Service Specialists
- Multiple Open Communication Channels
Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.
The Detailed Picture
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory workshop
