Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring

Brand Name : GUOMAT

Model Number : F-240-2

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : F-240-2

Warranty : One Year

Design High : 98 mm

Minimum Height : 53 mm

Stroke : 80 mm

Max Diameter : 300 mm

Customization : Available | Customized Request

Yokohama : S-240-2R

Contact Now

Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring


F-240-2 Detailed Parameter

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-240-2 S-240-2 98 148 53 ±40 300

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-240-2 S-240-2 450 4.4 22.2 520 2.4 0.88 2.9-3.9



Applications

  • Pulp and paper industry
  • Lumber mills
  • Lift tables
  • Tooling and machining system
  • Energy production
  • Tooling robotics and automation
  • Component assembly
  • Automotive assembly
  • Medical equipment
  • Conveyor systems
  • Packaging



GUOMAT Has Air Shock Absorber Part NO. Below

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R F-600-r1 F-240-4 S-240-4R F-240-r4
F-600-2 S-600-2R F-600-r2 F-240-3 S-240-3R F-240-r3
F-600-3 S-600-3R F-600-r3 F-240-2 S-240-2R F-240-r2
F-600-4 S-600-4R F-600-r4 F-240-1 S-240-1R F-240-r1
F-600-5 S-600-5R F-600-r5 F-220-4 S-220-4R F-220-r4
F-550-2 S-550-2R F-550-r2 F-220-3 S-220-3R F-220-r3
F-550-3 S-550-3R F-550-r3 F-220-2 S-220-2R F-220-r2
F-500-2 S-500-2R F-500-r2 F-200-2 S-200-2R F-200-r2
F-500-3 S-500-3R F-500-r3 F-200-3 S-200-3R F-200-r3
F-500-4 S-500-4R F-500-r4 F-200-4 S-200-4R F-200-r4
F-500-5 S-500-5R F-500-r5 F-160-1 S-160-1R F-160-r1
F-450-1 S-450-1R F-450-r1 F-160-2 S-160-2R F-160-r2
F-450-2 S-450-2R F-450-r2 F-160-3 S-160-3R F-160-r3
F-450-3 S-450-3R F-450-r3 F-160-4 S-160-4R F-160-r4
F-450-4 S-450-4R F-450-r4 F-120-4 S-120-4R F-120-r4
F-450-5 S-450-5R F-450-r5 F-120-3 S-120-3R F-120-r3
F-400-2 S-400-2R F-400-r2 F-120-2 S-120-2R F-120-r2
F-400-3 S-400-3R F-400-r3 F-100-4 S-100-4R F-100-r4
F-400-4 S-400-4R F-400-r4 F-90-3 S-90-3R F-90-r3
F-400-5 S-400-5R F-400-r5 F-90-2 S-90-2R F-90-r2
F-350-1 S-350-1R F-350-r1 F-90-1 S-90-1R F-90-r1
F-350-2 S-350-2R F-350-r2 F-300-1 S-300-1R F-300-r1
F-350-3 S-350-3R F-350-r3 F-300-2 S-300-2R F-300-r2
F-350-4 S-350-4R F-350-r4 F-300-3 S-300-3R F-300-r3
F-300-4 S-300-4R F-300-r4

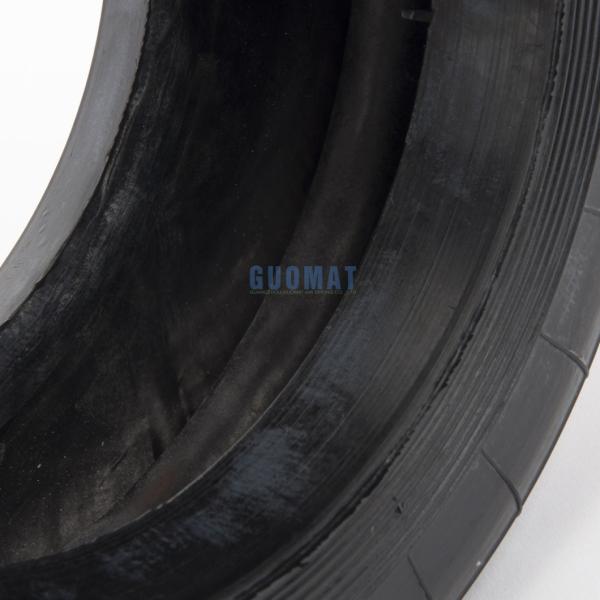

F-240-2 Detailed Pictures


Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring

Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring
Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring
