Air Rubber Punch S-600-3R Yokohama Triple Type Air Spring Actuator with Two Hoops
F-600-3 Air Spring Details
| Natural Height: 160 mm |
| Maximum Height: 270mm |
| Minimum Height: 90mm |
| Common Maximum Travel (mm): 68 mm |
| Compression Max. Outside Diameter (mm): 660 mm |
| Maximum Internal Pressure (MPA): 0.69 |
| Internal Pressure Failure(MPA): 3.9-4.9 |
Cross Reference
AIRSUSTECH Part No.: F-600-3
YOKOHAMA S-600-3R
YOKOHAMA S 600 3R
YOKOHAMA S-600-3
YOKOHAMA S 600 3
YOKOHAMA S600-3R
YOKOHAMA S600-3
Product Advantages
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Other Types Of Punch Air Spring/Pneumatic Parts
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) |
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) |
| F-600-1 | S-600-1 | 72 | 122 | 40 | ±30 | 700 |
| F-600-2 | S-600-2 | 102 | 172 | 57 | ±45 | 660 |
| F-600-4 | S-600-4 | 218 | 363 | 123 | ±90 | 660 |
| F-600-5 | S-600-5 | 276 | 456 | 156 | ±113 | 660 |
| F-550-2 | S-550-2 | 102 | 172 | 50 | ±45 | 610 |
| F-550-3 | S-550-3 | 160 | 270 | 90 | ±68 | 610 |
| F-500-2 | S-500-2 | 102 | 172 | 57 | ±45 | 560 |
| F-500-3 | S-500-3 | 160 | 270 | 90 | ±68 | 560 |
| F-500-4 | S-500-4 | 218 | 363 | 123 | ±90 | 560 |
| F-500-5 | S-500-5 | 276 | 456 | 156 | ±113 | 560 |
| F-450-1 | S-450-1 | 72 | 117 | 40 | ±30 | 510 |
| F-450-2 | S-450-2 | 102 | 172 | 57 | ±45 | 510 |
| F-450-3 | S-450-3 | 160 | 270 | 90 | ±68 | 510 |
| F-450-4 | S-450-4 | 218 | 363 | 123 | ±90 | 510 |
| F-450-5 | S-450-5 | 276 | 456 | 156 | ±113 | 510 |
| F-400-2 | S-400-2 | 102 | 167 | 57 | ±45 | 460 |
| F-400-3 | S-400-3 | 160 | 260 | 90 | ±68 | 460 |
| F-400-4 | S-400-4 | 218 | 348 | 123 | ±90 | 460 |
| F-400-5 | S-400-5 | 276 | 435 | 156 | ±113 | 460 |
| F-350-1 | S-350-1 | 72 | 117 | 40 | ±30 | 450 |
| F-350-2 | S-350-2 | 102 | 160 | 55 | ±42 | 410 |
| F-350-3 | S-350-3 | 160 | 250 | 85 | ±65 | 410 |
| F-350-4 | S-350-4 | 218 | 336 | 118 | ±85 | 410 |
| F-300-1 | S-300-1 | 72 | 117 | 40 | ±30 | 400 |
| F-300-2 | S-300-2 | 98 | 158 | 53 | ±40 | 360 |
| F-300-3 | S-300-3 | 152 | 242 | 82 | ±60 | 360 |
| F-300-4 | S-300-4 | 206 | 326 | 111 | ±80 | 360 |
| F-240-4 | S-240-4 | 206 | 316 | 111 | ±80 | 300 |
| F-240-3 | S-240-3 | 152 | 232 | 82 | ±60 | 300 |
| F-240-2 | S-240-2 | 98 | 148 | 53 | ±40 | 300 |
| F-240-1 | S-240-1 | 72 | 110 | 40 | ±30 | 340 |
| F-220-4 | S-220-4 | 206 | 311 | 111 | ±80 | 280 |
| F-220-3 | S-220-3 | 152 | 232 | 82 | ±60 | 280 |
| F-220-2 | S-220-2 | 98 | 148 | 53 | ±40 | 280 |
| F-200-2 | S-200-2 | 98 | 148 | 53 | ±35 | 260 |
| F-200-3 | S-200-3 | 152 | 232 | 82 | ±53 | 260 |
| F-200-4 | S-200-4 | 206 | 311 | 111 | ±70 | 260 |
| F-160-1 | S-160-1 | 72 | 102 | 40 | ±25 | 220 |
| F-160-2 | S-160-2 | 98 | 148 | 53 | ±35 | 220 |
| F-160-3 | S-160-3 | 152 | 227 | 82 | ±53 | 220 |
| F-160-4 | S-160-4 | 206 | 306 | 111 | ±70 | 220 |
| F-120-4 | S-120-4 | 206 | 306 | 111 | ±70 | 180 |
| F-120-3 | S-120-3 | 152 | 227 | 82 | ±53 | 180 |
| F-120-2 | S-120-2 | 98 | 148 | 53 | ±35 | 180 |
| F-100-4 | S-100-4 | 206 | 296 | 121 | ±60 | 160 |
| F-90-3 | S-90-3 | 152 | 222 | 87 | ±45 | 160 |
| F-90-2 | S-90-2 | 98 | 143 | 58 | ±30 | 160 |
| F-90-1 | S-90-1 | 76 | 106 | 46 | ±30 | 125 |
F-600-3 Real Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.

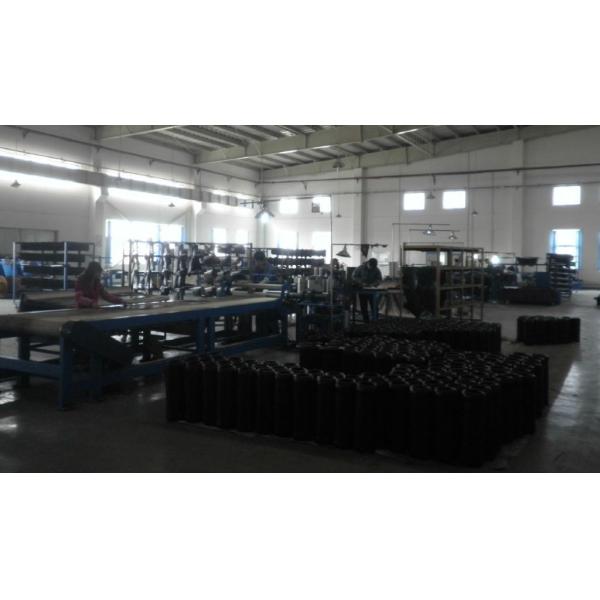

Factory Workshop
