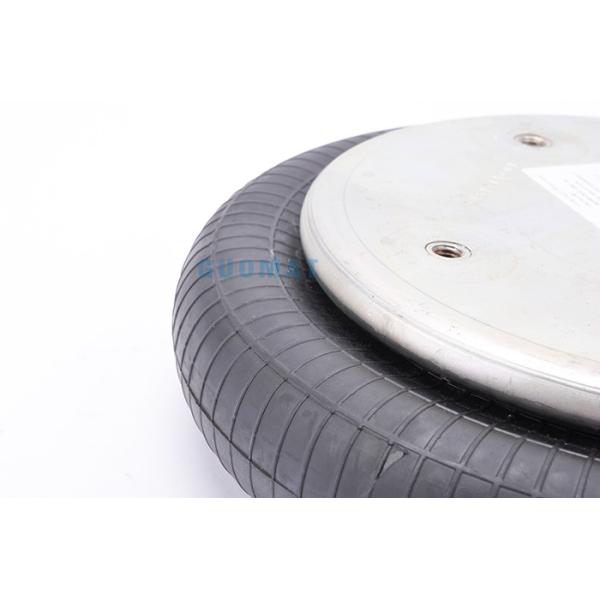

Air Spring Assembly GUOMAT 1B6171 Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine
GUOMAT 1B6171 Specifications and Technical Data
Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Firestone Bellows Number: 19
GUOMAT NO.:1B6071
Cross NO.:1B5071

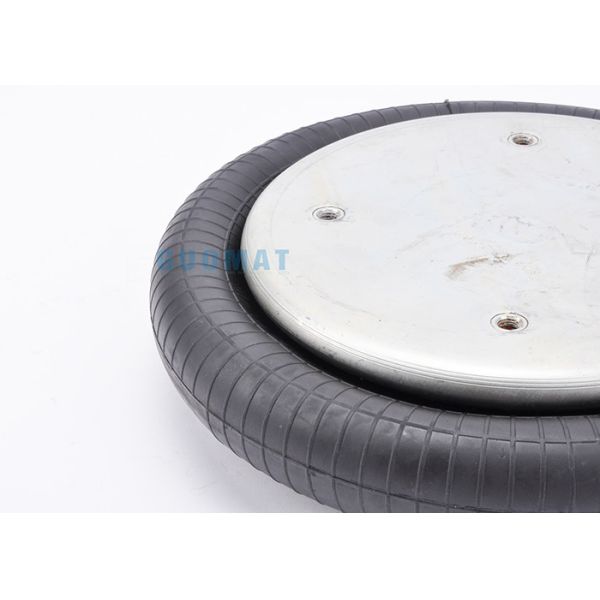

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC
Screw Center Distance of Top Cover Plate :157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
Distance Gas Hole Between Nut 73 mm

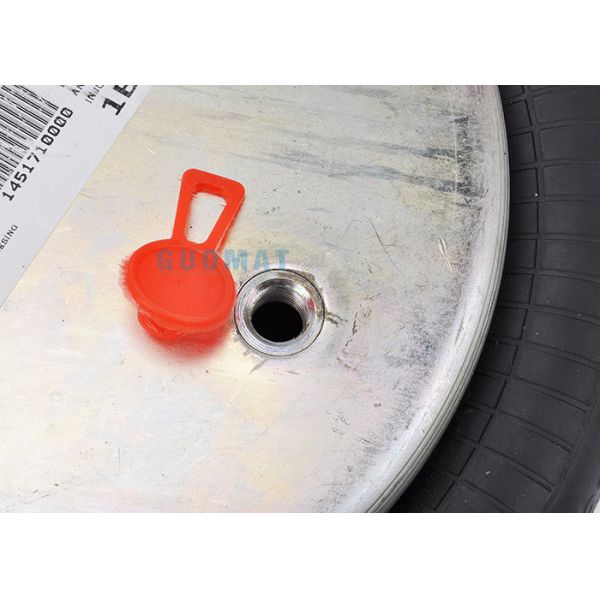

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 9.00 inches / 231mm
Bottom Cover Plate Diameter (Width): 9.00 inches / 231mm
❹Rubber Bellows
Rubber Bellows Natural Diameter 300 mm
Rubber Bellows Max Diameter : 325 mm
Rubber Bellows Natural Height : 110 mm
The Working Stroke : MAX 160 mm to MIN 55 mm
Compressed Height: 2.12 inches / 105 mm
Compressed Height: 2.12
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
| 1B33014 | FS 330-14 | 51 | 360 | 129 |
| 1B53011 | FS 530-11 | 51 | 400 | 124 |
| 1B53014 | FS 530-14 | 51 | 420 | 134 |
| 1B96012 | FS 960-12 | 63 | 480 | 117 |
| 1B133011 | FS 1330-11 | 63 | 570 | 107 |
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
