TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection

Brand Name : GUOMAT

Model Number : 1B5082

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Rubber Steel

GUOMAT : 1B5082

Warranty : 1 Year

Weight : 4.0 kg

Other names : Flange Air Spring Vibration

Pressure Ability : 0.2-0.8 M Pa

TORPRESS : 110

Contact Now

TORPRESS 110 1B5082 To Rubber bellows NO. 1B5082 Flange Connection

Specifications and Technical Data

TORPRESS 110

GUOMAT Part Number:1B5082

Operating Temperature: 57Cº to -54Cº

Natural Height: 120mm

Top Cover Plate Diameter: 138mm

Bottom Cover Plate Diameter: 138mm

Distance of the screw:120mm

Top Cover Plate Screw (Nut) Tooth :6pcsXM8X1.25

Bottom Cover Plate Screw (Nut) Tooth :6pcsXM8X1.25

The Working Stroke : MAX 200 mm to MIN 80 mm

MODEL

STAN- DARD Code

HIGH- TEMP Code

Connection

Max

OD

MM

Min.

Height

MM

Max.

Height

MM

Total Travel

MM

 Thread Air tion Hole

Connecting bolts or holes

N.

Connecting bolts or holes

Ø

16 93029 93086 P1 153 46 91 45 1/4” NPT 2 3/8” - 16 UNC
131 94047 No P1 165 50 110 60 1/4” NPT 2 3/8” - 16 UNC
110 93113 93114 P1 210 51 151 100 1/4” NPT 2 3/8” - 16 UNC
110 88540 93079 F1 210 45 145 No 6 M 8 x 1.25
110 88820 89023 F1 210 45 145 No 6 M 8 x 1.25
116 93027 No P1 231 46 152 106 1/4” NPT 2 3/8” - 16 UNC
19 94016 95015 P2 325 51 151 100 1/4” NPT 2 3/8” - 16 UNC
19 94014 No F2 325 43 143 No 12 M8x1

TORPRESS AIR SPRING

BELLOWS ACTUATORS

MODEL

 STAN- DARD HIGH- TEMP Connec- Max Min. Max. tion OD Height Height
Code Code mm mm mm
16 93029 93086 P1 153 46 91
131 94047 ——— P1 165 50 110
93113 93114 P1 210 51 151
110 88540 93079 F1 210 45 145
88820 89023 F1 210 45 145
116 93027 ——— P1 231 46 152
94016 95015 P2 325 51 151
94014 ——— F2 325 43 143
23 B 202665 ——— F1 165 65 205
26 84181 89422 F2 220 85 245
20 86600 88538 F2 255 80 265
245 93740 202344 F1 27 82570 85 310
94091 ——— P2 325 88 288
88544 89425 F2 325 80 280
21 BR 89457 ——— F2 380 80 290
21A BR 97300 ——— F2 435 85 315
21B BR 92154 ——— F2 440 85 385
28 BR 92527 ——— F2 445 80 310
28 B 90559 ——— F2 485 85 375
93056 ——— P3 570 90 330
29 93166 ——— F2 570 80 320
31 95210 ——— F2 700 85 700
325 203332 ——— F2 400 80 500
322 92615 ——— P4 310 133 408
879948173 ——— F2 310 125 400
321 88110 ——— F2 380 125 400

TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection

Style Number Design Height Load (at Design Height) at: Natural Frequency % of Isolation at Forced Frequency
••40 PSIG (pounds) 60 PSIG (pounds) 80 PSIG (pounds) (@ 80 PSIG) fn(cpm) 400 CPM % 800 CPM % 1500 CPM %
SINGLE CONVOLUTION
16 3.0 420 640 880 237 90.3 97.4
131 3.5 550 850 1,170 181 74.4 94.6 98.5
160 5.5 650 1,010 1,390 124 89.4 97.5 99.3
110 4.5 650 1,010 1,390 162 80.2 95.7 98.8
116 4.5 850 1,330 1,830 163 80.2 95.7 98.8
116-1 5.5 940 1,410 1,930 139 86.3 96.9 99.1
115 4.5 1,210 1,880 2,540 151 83.4 96.3 99.0

Product Tags:

convoluted air spring



air helper springs


Wholesale TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection from china suppliers

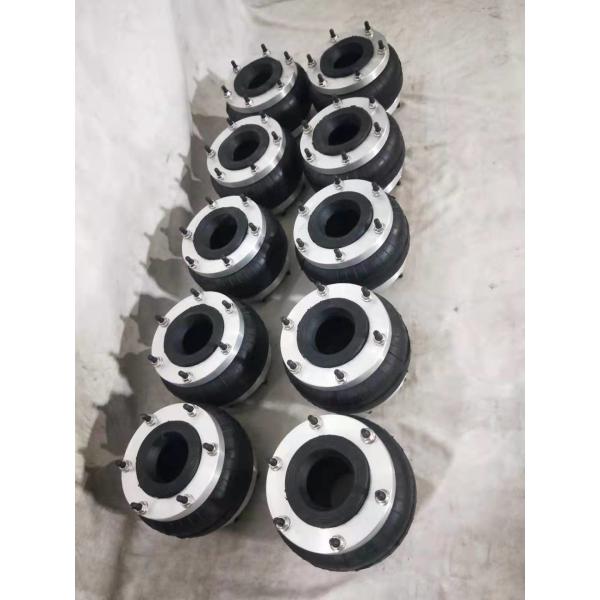

TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection Images
