FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting shaft SAF 90557237
Common applications of GUOMAT 2B6943 AIR SPRING airbag:
The main trailer suspension GUOMAT AIR SPRING provides excellent cargo protection, is not easy to cause damage to the cargo, and at the same time reduces other maintenance problems caused by road vibration and trailer bounce when empty. The air spring can make the trailer service life longer. Because of its good shock absorption effect, it can be used to haul more kinds of goods, such as some fragile and breakable items. GUOMAT AIR SPRING thus reduces the expensive empty trailer mileage.
GUOMAT 2B6943 Specifications:
Contitech Part Number:FD200-25 426
Contitech Part Number:FD 200-25 426
Contitech Part Number:FD200-25 426
Firestone Part Number: W01-358-6943 /
Firestone Part Number:W013586943 /
Firestone Part Number:W01 358 6943
Firestone Bellows Number: 20-2
Goodyear Part Number: 2B9-250
Goodyear Part Number: 2B9 250
Goodyear Part Number: 2B9250
Goodyear Bellows Number: 578-92-3-206 /
Goodyear Bellows Number:578923206 /
Goodyear Bellows Number:578 92 3 206
Triangle Part Number: 4426
Triangle Bellows Number: 6332
Watson & Chalin #: AS-0041
Bellows NO.: 20-2
Order Number: W01-358-6943

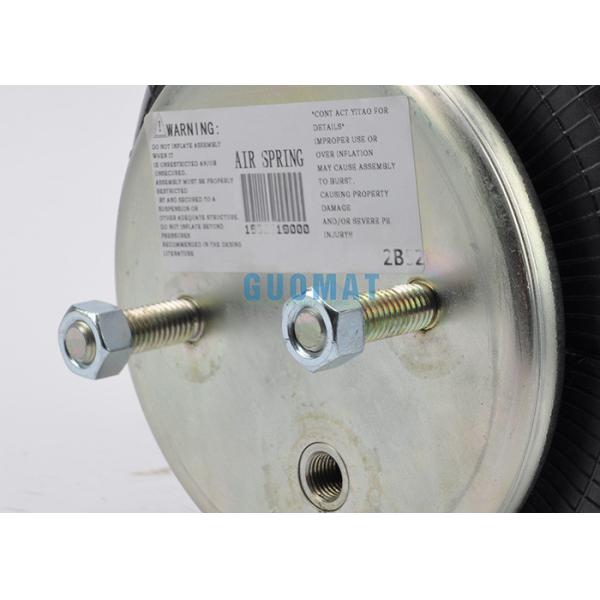

Top Plate Number: 3101
Bottom Piston Number: 3090
Technical Data:
Compressed Height: 3.12 inches /
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 79 mm
Gas Hole / Air inlet : 1/4 NPTF
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
loading cap.at3.0bar: 11.17kn
loading cap.at7.0bar: 31.65kn
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
Weight : 6.5kg
Desigh height : 300mm
Deflection(height min) :150mm
Deflection(height max):440mm
Working stroke: 290mm
Cross Information
GUOMAT 2B6943 Cross others OEM
| OEM References Numbers | References Numbers |
| Firestone : W01-358-6943 | Watson&Chalin : AS-0041 |
| Contitech : FD 200-25 426 | Neway/SAF : 90557237 |
| Contitech :: 161332 | V-Steer II (Lift Bag) |
| Goodyear: 2B9-250 | Van Raden |
| Triangle : 6332/4426 | Ridewell : 1003586943C |
| Goodyear:: 578923206 | Tuthill : 6352 |
CONTITECH FD 200-25 426
FIRESTONE W01-358-6943
GOODYEAR 2B9-250
OEM Information
WATSON&CHALIN AS-0041
NEWAY 90557237
Design height H: recommended 10 inch, minimum 9.06 inch |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Pneumatic application – static characteristic values Force F [lbf] |
| | | | | | | |
| | | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Details Technical data at the below photo
