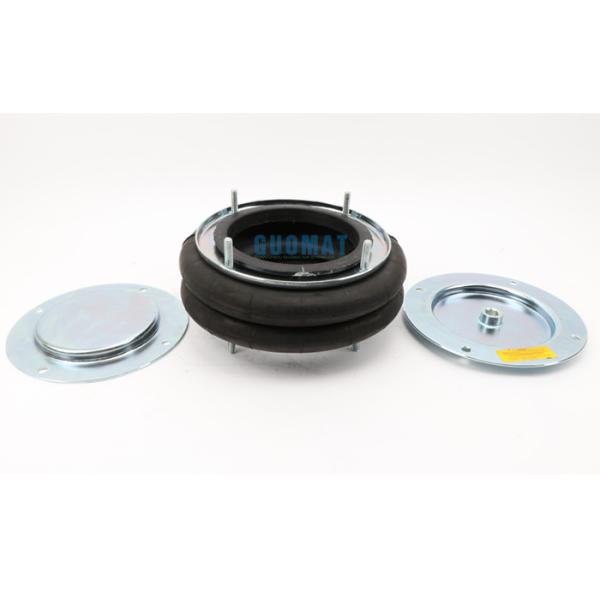

G1/2 Air Inlet 8" 203.2mm PM31082 Dunlop Air Spring

Brand Name : Norgren

Model Number : PM/31082

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Price : US$1.00-US$299.00/PC

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

Bellows NO . : Springride DF 8”x2

Norgren : PM/31082

Plate Dia. : 184 mm

Max Dia. : 225 mm

Pressure Ability : 0.2-0.8 MPa

Air inlet : G1/2

Stroke : 150 mm

Dunlop : S08201

Contact Now

PM31082 Dunlop Air Spring 8"／203.2mm Stroke Length 185 mm Dunlop Pneuride Bellows 8”x2 S08201 Double Convoluted

PM／31082 Dunlop Replaces These Air Springs

Dunlop FR: 8”x2 S08201
Norgren: PM/31082 1 PM 31082 1 PM31082
Nominal 0 (inch) X convolutions: 8”x2/8”x2/8x2
Continental ContiTech: FD 120-17 CI G3/4
Continental ContiTech: FD 120-17 CI G3/4 M8
Continental ContiTech: FD 120-17 3/4 M8
Continental ContiTech: FD 120-17 CI 2682 030 000
Continental ContiTech Bellow: FD 120-17 /FD 120 171 FD12017
Goodyear: 2B8-2152 12B8 2152 12B82152
Goodyear Flex No.: 578-92-3-21511578 92 3 2151/ 5789232151
Festo: EB-215-155/ EB 215 1551 EB215155

PM／31082 Dunlop Specifications and Detail Technical Parameters:

Operation: Single acting
Stroke length: 185 mm
Port size: G3/4
Nominal diameter: 8"
Number of convolutions:

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2

❸ Cover Plate
Top Cover Plate Diameter (Width): 184 mm

Bottom Cover Plate Diameter (Width): 184 mm

Material top and bottom plate:Steel

❹Rubber Bellows
Diameter max at 7 bar:225MM

Stroke of Rubber Bellows:75mm-225m

❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop

max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber

Medium: Compressed Air
Port size: G3/4
Operation: Single acting
Operating pressure: 0 ... 8 bar
Operating temperature: -30 ... 50 °C
Stroke length: 185 mm
Theoretical force: 16500 N
Range: PM/31000


Other kinds of model air bellows:

W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1


Bellows Type Ø Plate Ø Max. Min. Height Max. Height Total Stroke Static Height ØC Space Envelope Weight in kg

Single layer

 6x1 153 168 45 90 45 80 127 180 1.95
8x1 184 230 47 120 73 90 156 240 3.05
10 x 1 210 280 50 135 85 95 181 295 3.8
12 x 1 260 330 50 145 95 95 232 345 4.75
141⁄2 x 1 310 395 47 165 118 105 283 410 6.9

Double layer

 6x2 153 168 73 170 97 120 127 180 2.25
8x2 184 230 72 225 153 150 156 240 3.75
91⁄4 x 2 197 260 70 240 170 160 168 275 4.5
10 x 2 210 280 70 240 170 160 181 295 4.6
12 x 2 260 330 74 240 166 160 232 345 5.85
12 x 2E 260 345 75 400 325 270 232 370 6.9
141⁄2 x 2 310 395 70 280 210 180 283 410 8.5
16 x 2 310 430 77 320 243 180 283 445 8.8
Triple layer 6x3 153 168 105 255 150 180 127 180 2.55
8x3 184 215 100 350 250 230 156 240 4.4
10 x 3 210 280 100 365 265 235 181 295 5.4
12 x 3 260 330 100 430 330 222 232 345 7.0
141⁄2 x 3 310 395 100 476 376 280 283 410 10.0
16 x 3 310 430 125 500 375 280 283 445 16.0

G1/2 Air Inlet 8" 203.2mm PM31082 Dunlop Air SpringG1/2 Air Inlet 8" 203.2mm PM31082 Dunlop Air Spring
