Single Convoluted Air Spring Contitech FS40-6 G1/8 M8 Plate Industrial Rubber Bellows
Product Description
GUOMAT Single convoluted air spring with crimped plated,G1/8 Gas Hole,M8 Threaded Hole.
1. Hight quality products
2. Competitive factory price
3. Accept small orders or sample orders
4. 1 year warranty
5. Cross information : Contitech FS 40-6 1/8 M8
Specification
| GUOMAT No. | 1B4060 |
| Material | Rubber + Steel |
| Condition | Brand-New |
| Package | Carton |
| Place of Origin | China |
| Trade Term | EXW;FOB |
| Warranty | 12 Months |
| Payment | T/T,L/C,Western Union,PayPal |
| Delivery Time | 2-8 working days after receive your payment |
Packaging Information
| Packing Units | Single Item |
| Net Weight | 1 KG |
| Gross Weight | 2 KG |
| Package Size | 24*24*24(cm) |
| Package | Export standard packing |
Reference Number
CONTITECH FS 40-6
CONTITECH FS40-6
CONTITECH FS 40-6 1/8 M8
CONTITECH FS 40-6 G1/8 M8
PHOENIX SP1B04
PHOENIX SP 1B04
PHOENIX SP1B 04
WEFORMA WBE100-E1
FS40-6 Air Spring Technical Data
Top Cover Plate Diameter : 90mm
Bottom Cover Plate Diameter : 90mm
Gas Hole : G1/8
Top Cover Plate Screw (Nut) Tooth : M8X1.25
Distance between Top Cover Plate Screws and Air Holes : 20mm
Bottom Cover Plate Screw (Nut) Tooth : 2XM8X1.25
Screw Center Distance of Bottom Cover Plate : 20mm
Rubber Bellows MAX Diameter: 145 mm
The Working Stroke : MAX 110 mm to MIN 50 mm
Maximum Height : 110 mm
Minimum Height : 50mm
Contitech CI Style Air Spring
| FS 40-6 CI | FS 50-5 CI | FS 70-7 CI |
| FS 100-10 CI | FS 120-12 CI | FS 200-10 CI |
| FS 120-9 CI | FS 330-11 CI | FS 330-14 CI |
| FS 120-10 CI | FS 53011 CI | FS 530-14 CI |
| FS 960-12 CI | FS 1330-11 CI | FD 40-10 CI |
| FD 70-13 CI | FD 110-15 CI | FD 120-17 CI |
| FD 120-20 CI | FD 200-19 CI | FD 220-22 CI |
| FD 200-25 CI | FD 330-22 CI | FD 330-30 CI |
| FD 530-22 CI | FD 530-30 CI | FD 530-35 CI |
| FD 960-22 CI | FT 330-29 CI | FT 430-32 CI |
| FT 530-32 CI | FT 530-35 CI | FT 960-34 CI |
| FD 1330-25 CI | FT 1330-35 CI | |

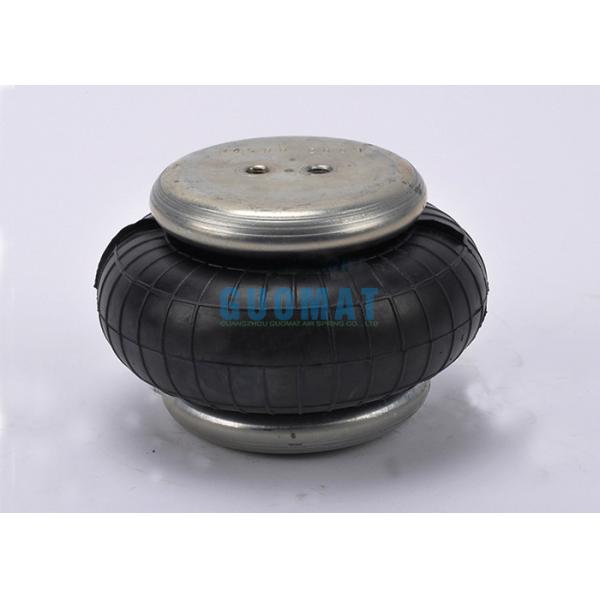

The Product Real Photos
