8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags

Product Categories

GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

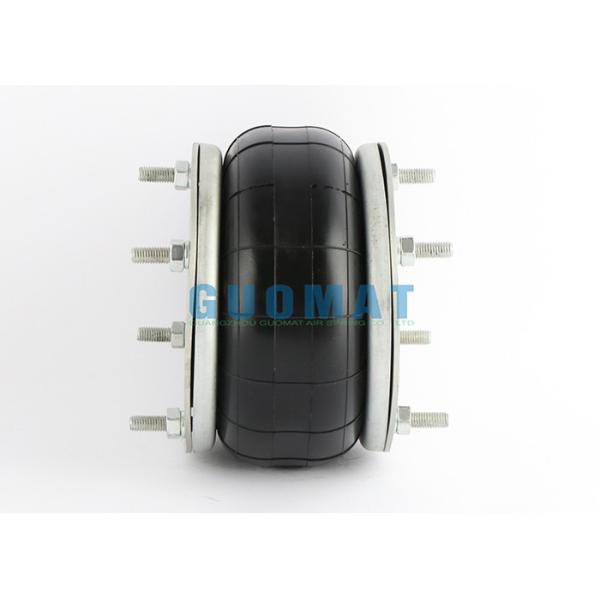

8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags

Name: 8x1 Single Convoluted Rubber Air Spring Firestone W01R584054 Industrial Air Bags
Brand: GUOMAT
Price: 49.9 USD

Wholesale 8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags from china suppliers

Brand Name : GUOMAT

Model Number : 1B 8X1

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $49.9-59.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber+Steel

Warranty : 1 Year

OEM NO. : 8''x1

Application : Industrial Machine

Packing Size : 24*24*24(cm)

Shock Absorber Type : Gas-Filled

Firestone : W01R584054

DUNLOP : SP1637

Contact Now

8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags

Cross Reference Number of GUOMAT No 1B8x1

GUOMAT Part Number : 1B 8X1

Continental ContiTech : FS 138-8

Continental ContiTech : FS138-8

Continental ContiTech : FS 138-8 DS

Continental ContiTech Part Number : FS 138-8 DS G1/2

Continental ContiTech Order Number : 66507

Continental ContiTech Part Number : FS 138-8 1/2 M10

Continental ContiTech Order Number : 66507

Firestone Number: W01-R58-4054

Firestone Number: W01R584054

Firestone Number: W01 R58 4054

Firestone Number: w01-r58-4054

Firestone Number: w01r584054

Firestone Number: w01 r58 4054

Firestone Style: 8 x 1

Firestone Style: 8''x1

Firestone Style: 8''X1

Dunlop FR: 8"x1

Dunlop FR: SP1537

Dunlop FR: SP 1537

Dunlop UK (Pneuride): 8"x1

Dunlop UK (Pneuride): PNP305500110

Norgren: M/31081

Norgren: M 31081

Norgren: M31081

Parker Pneumatic: 9109014

Technical Data

Working temperature : -40°C bis +70°C

Failure testing : ≥3 millions

Top Cover Plate Diameter : 184mm

Bottom Cover Plate Diameter : 184mm

Gas Hole / Air inlet : G1/2

Rubber Bellows MAX Diameter : 203mm

The Working Stroke : MIN 47 mm

Top Cover Plate Screw (Nut) Tooth : 4XM10X1.5

Bottom Cover Plate Screw (Nut) Tooth : 4XM10X1.5

Screw Center Distance of Top Cover Plate : 156mm

Screw Center Distance of Bottom Cover Plate : 156mm

Continental D Style Air Spring Details

Model	Gas Hole	Screw Tooth	Rubber Bellow (mm)	Cover Plate (mm)
FS 76-7 DS CR	G1/2	M10	175	153.5
FS 210-10 DS	G1/2	M10	270	210
FS 412-10 DS	G1/2	M10	330	260
FS 614-13 DS	G1/2	M10	400	310
FS 816-15 DS	G1/2	M10	420	310
FD 76-14 DS CR	G1/2	M10	175	153.5
FD 138-18 DS	G1/2	M10	225	184
FD 209-21 DS	G1/2	M10	255	197
FD 210-22 DS	G1/2	M10	270	210
FD 412-18 DS	G1/2	M10	325	260
FD 614-26 DS	G1/2	M10	400	310
FD 816-30 DS	G1/2	M10	435	310
FT 76-20 DS CR	G1/2	M10	178	153.5
FT 138-26 DS	G1/2	M10	230	184
FT 210-32 DS	G1/2	M10	270	210

Product Images

Product Tags:

Single Convoluted Rubber Air Spring

W01-R58-4054 Rubber Air Spring

W01-R58-4054 Industrial Air Bags

8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags Images
