FS 200-10 CI G1/4 Contitech Single Convoluted Air Spring Bellow Type Industrial Air Bag
Product Description
Item Name : Air Spring
Model Number : 1B200 10
Spring Material : Natural Rubber and Steel
Warranty : One Year Warranty
MOQ : 1 Pcs
Sample : Acceptable
Our Service : 1.Reply your inquiry in 24 working hours
2.Timely delivery
3.Good after-sale service
4.Factory price
FS 200-10 CI G1/4 Industrial Air Spring Technical Data
★Cover Plate
Top cover plate diameter : 160mm
Bottom cover plate diameter : 160mm
★Air Inlet/Gas Hole/Air Fitting
Gas Hole : G1/4
★Screw/Blind Nut
Top cover plate screw(nut) tooth : 2XM10X1.5
Screw center distance of top cover plate : 89mm
Bottom cover plate screw(nut) tooth : 2XM10X1.5
Screw center distance of bottom cover plate : 89mm
Distance between screw and gas hole : 44.5mm
★Rubber Bellow
Rubber bellow diameter : 220mm
The natural working stroke : 110mm
FS-200-10 CI G3/4 Air Help Spring Technical Parameter
★Cover Plate
Top cover plate diameter : 160mm
Bottom cover plate diameter : 160mm
★Air Inlet/Gas Hole/Air Fitting
Gas Hole : G3/4
★Screw/Blind Nut
Top cover plate screw(nut) tooth : 2XM8X1.25
Screw center distance of top cover plate : 89mm
Bottom cover plate screw(nut) tooth : 2XM8X1.25
Screw center distance of bottom cover plate : 89mm
Distance between screw and gas hole : 38mm
★Rubber Bellow
Rubber bellow diameter : 220mm
The natural working stroke : 110mm
Reference Numbers
| FIRESTONE | W01-M58-6374 | FIRESTONE | W01M586374 |
| FIRESTONE | W01/M58/6374 | FIRESTONE | w01-m58-6374 |
| FIRESTONE | 6374 | FIRESTONE | w01m586374 |
| CONTITECH | FS 200-10 | CONTITECH | FS200-10 |
| CONTITECH | FS 200-10 CI | CONTITECH | FS 200-10 CI M10 |
| CONTITECH | fs 200-10 | CONTITECH | fs200-10 |
| PHOENIX | SP 1B 12 | PHOENIX | SP1B12 |
| DUNLOP | 9'' 1/4X1 | DUNLOP | S09101 |
| BOSCH | 822419004 | FESTO | EB-250-85 |
| NORGREN | PM 31091 | NORGREN | 8 1/4X1 |
Industrial Air Spring
Industrial air springs are widely used in papermaking machinery, vehicle testing equipment, mechanical grippers, vibration tables and other industrial equipment. The use of air springs can effectively improve the work efficiency, safety and service life of the equipment. In addition, it can play an important role in shock absorption, lifting, support, etc., helping customers save manufacturing costs and win more economic profits.
1. The product has low cost, wide application and simple operation.
2. Long service life without maintenance and lubrication.
3. This product is flexible in expansion and contraction, strong in carrying capacity, convenient in design and simple in structure.
4, no friction, soft medium.

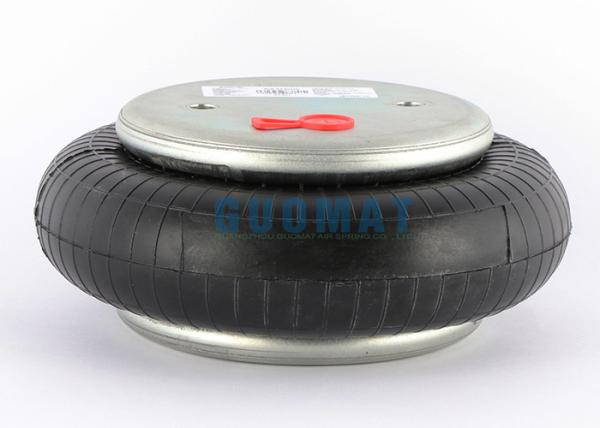

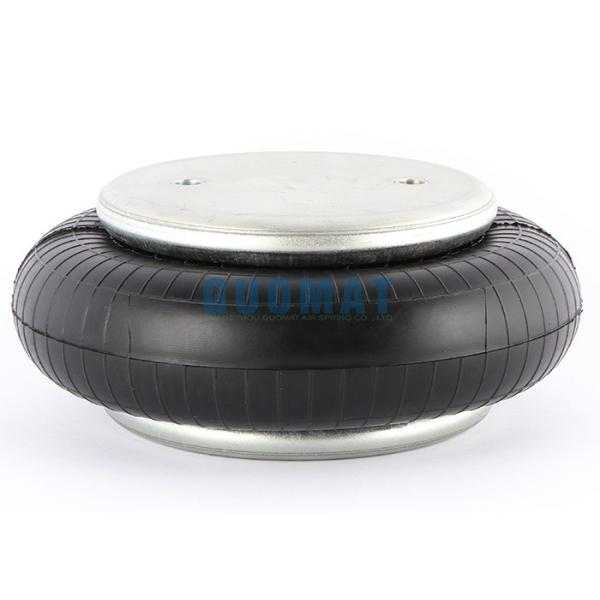

Product Picture
