Goodyear 1B9-202 Industrial Air Spring Single Convoluted Bellows 578913201
Quick Details
| Type | Industrial Air Spring |
| Fit for | Goodyear |
| OEM NO. | 1B9-202/ 578 91 3 201 |
| Condition | Brand New |
| Material | Rubber+Steel |
| Warranty | 1 Year |
| Delivery | 2-8working days after receiving payment |
Product Top Parameter
Top cover plate diameter:160mm
Screw center distance of top cover plate:89mm
Screw and Air hole distance of top cover plate:44.5mm
Air hole:1/4-18NPTF
Top cover plate screw(nut)tooth:2x3/8-16UNC
Top cover plate diameter:160mm
Product Bottom Parameter
Screw center distance of bottom cover plate:89mm
Bottom cover Plate diameter:160mm
Bottom cover plate screw(nut)tooth:2x3/8-16UNC
Rubber Bellows
Rubber bellows MAX diameter:222mm
The working stroke:MAX 160mm to MIN 60mm
Maximum height:160mm
Minimum height:60mm
G3/4 Goodyear 1B9-202
Top cover plate diameter:160mm
Bottom cover Plate diameter:160mm
Screw center distance of top cover plate:70mm
Screw center distance of bottom cover plate:70mm
Air hole:G3/4
Top cover plate screw(nut)tooth:2XM8X1.25
Bottom cover plate screw(nut)tooth:2XM8X1.25
Rubber bellows MAX diameter:222mm
The working stroke:128mm
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
- The products features low cost, wide use and easy operation.
- It achieves long service life, and requires no maintenance and lubrication.
- This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
- It comes with no friction and soft medium.

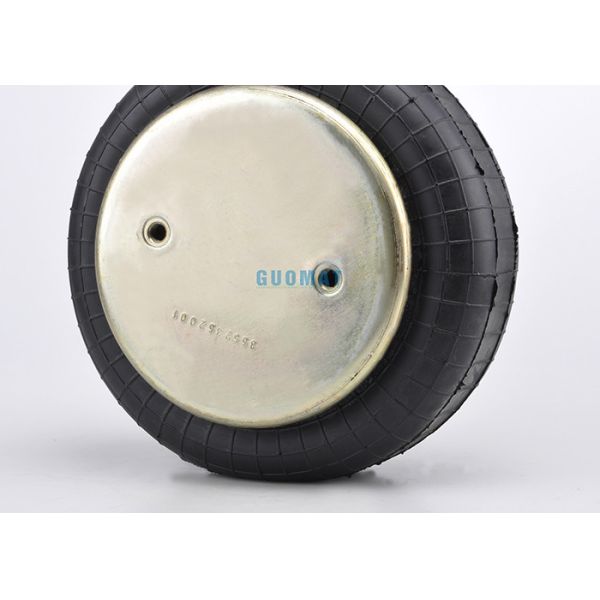

Product Picture Of 1B202 Air Spring
