Punching Equipment Suspension Air Spring Rubber Airbag For Industrial Lift Axles

Name: Punching Equipment Suspension Air Spring Rubber Airbag For Industrial Lift Axles
Brand: GUOMAT
Price: 59.9 USD

Wholesale Punching Equipment Suspension Air Spring Rubber Airbag For Industrial Lift Axles from china suppliers

Brand Name : GUOMAT

Model Number : F-240-2

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $59.9-69.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Type Name : Rubber Bellows Air Suspension Spring

Spring Material : Natural Rubber

Warranty : 12 Months

Product Feature : In-situ installation

Product Type : Gas-filled

Color : Black

Application : Industrial Punching Machine

High Light : Convoluted Rubber Air Spring /Airbag/Suspension

Contact Now

For Punching Equipment Suspension Air Spring Rubber,Airbag For Industrial Lift Axles

Product Information

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT/Neutral
Model Number	F-240-2
Material	Natural Rubber
Warranty	1 Year
MOQ	1PCS If We Have Stock
Package	(1)Bubble Bag And Brown Carton (2)Customer Require Packaging (3)Normal Exported Package
Deliver Time	About 2-8 Working Days
Payment	T/T,L/C,PAYPAL,Western Union
After Service	(1)Examination Before Shipment (2)Follow Up The Customers'Feedback
Main Product We Sell	Air Spring,Convoluted Air Spring,Industrial Air Spring,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Wster Pump

Technical Data

GUOMAT NO.	ReferenceNO.	Height H(mm)			Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area (cm²)	Volume(L)
GUOMAT NO.	ReferenceNO.	Design Height (mm)	Max Height (mm)	Min Height(mm)	Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area (cm²)	Volume(L)
F-240-4	S-240-4	206	316	111	±80	300	450	10.1
F-240-3	S-240-3	152	232	82	±60	300	450	7.3
F-240-2	S-240-2	98	148	53	±40	300	450	4.4
F-240-1	S-240-1	72	110	40	±30	340	450	3.5

GUOMAT NO.	Reference NO.	Load (KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure(MPa)	Internal Pressure Failure(MPa)
F-240-4	S-200-4	22.2	235	1.6	0.88	2.9-3.9
F-240-3	S-200-3	22.2	324	1.9	0.88	2.9-3.9
F-240-2	S-200-2	22.2	520	2.4	0.88	2.9-3.9
F-240-1	S-240-1	22.2	765	2.9	0.88	2.9-3.9

Industrial Air Spring

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.

GUOMAT Other Related Product

Contitech	Goodyear	Fire-stone	Phoenix
928N	8042	W01-095-0228	2E23A
943N	9001	W01-095-0189
973N	8012	W01-095-0198	1F21A
945N	9014	W01-095-0063	1E21C
975N		W01-095-0437	1E10
		W01-095-0294
		W01-358-9391
4913NP02	1R14-753	W01-095-0500	1D28H-16
	1R14-869
4159NP06		W01-M58-0736
810NTB	1R14-713	W01-M58-0749	1DK28A4
4022NP02	1R11-709	W01-M58-0756
4022NP02	1R11-709	W01-M58-0756
836MB		W01-M58-0775	1DF25-4
836MB	1R12-700	W01-M58-0776	1DF25-1
836M2K1	1R12-711	W01-M58-8721	1DF25-13
887M	1R11-796	W01-M58-0780
889MK2		W01-M58-0781
		W01-M58-0918
4004NP02		W01-M58-0919
4004NP02		W01-M58-0919


6603NP02
4183NP23
4883N1P07
6609NP01

Product Display

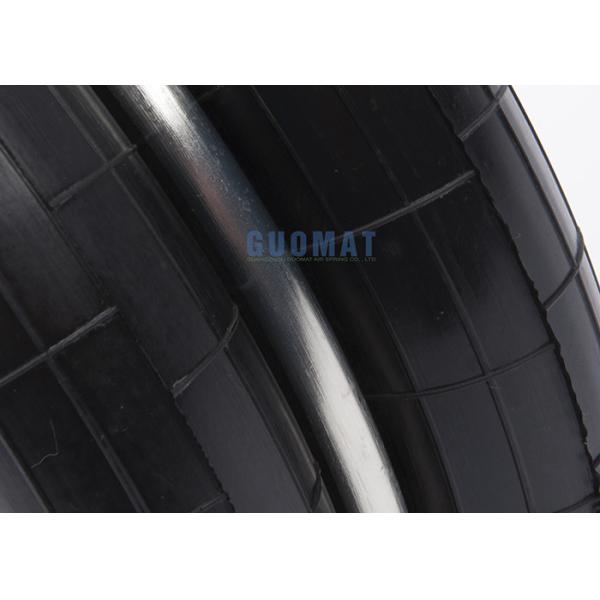

Punching Equipment Suspension Air Spring Rubber Airbag For Industrial Lift Axles
