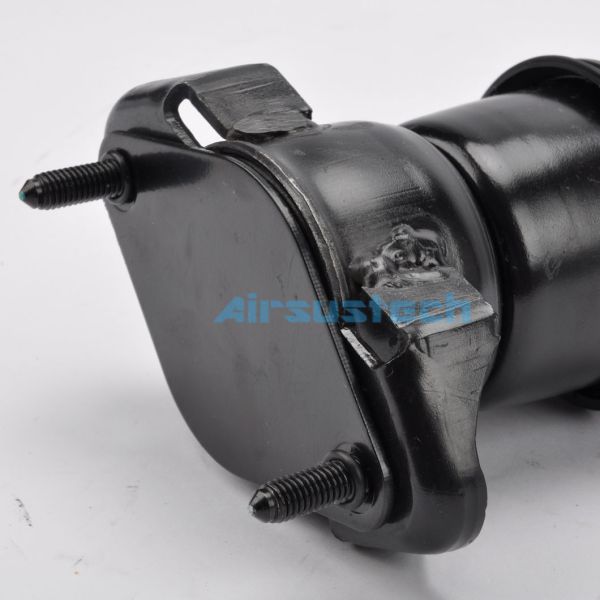

A1643200631 Mercedes-Benz ML-Class W164 Rear Shock Absorber With ADS Suspension Part
OE Part No.
Mercedes Benz A1643200631 / A 1643200631 / A 164 320 0631 / A 164 320 06 31
Mercedes Benz A1643201231 / A 1643201231 / A 164 320 1231 / A 164 320 12 31
Mercedes Benz A16420331 / A 16420331 / A 164 203 31
Mercedes Benz A1643202031 / A 1643202031 / A 164 320 2031 / A 164 320 20 31
Mercedes Benz A164202231 / A 164202231 / / A 164 202231
Mercedes Benz A1643202631 / A 1643202631 / A 164 320 2631 / A 164 320 26 31
Mercedes Benz A1643200731 / A 1643200731 / A 164 320 0731 / A 164 320 07 31
Mercedes Benz A1643202731 / A 1643202731 / A 164 320 2731 / A 164 320 27 31
Mercedes Benz A1643203031 / A 1643203031 / A 164 320 3031 / A 164 320 30 31
Applicable to the Following Vehicles
| Car Make | Year | Engine | Displacement | Power |
| Mercedes Benz M-CLASS (W164) ML 300 CDI 4-matic (164.120) | 2005-2009 | OM 642.940 | 2987 | 140 |
| Mercedes Benz M-CLASS (W164) ML 300 CDI 4-matic (164.121) | 2009-2011 | OM 642.940 | 2987 | 140 |
| Mercedes Benz M-CLASS (W164) ML 300 CDI 4-matic (164.122) | 2010-2011 | OM 642.820 | 2987 | 150 |
| Mercedes Benz M-CLASS (W164) ML 320 CDI 4-matic (164.122) | 2009-2011 | OM 642.940 | 2987 | 165 |
| Mercedes Benz M-CLASS (W164) ML 350 4-matic (164.186) | 2005-2009 | OM 642.940 | 2987 | 165 |
| Mercedes Benz M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) | 2005-2011 | M 272.967 | 3498 | 200 |
| Mercedes Benz M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) | 2010-2011 | OM 642.820 | 2987 | 170 |
| Mercedes Benz M-CLASS (W164) ML 420 CDI 4-matic (164.128) | 2006-2009 | OM 629.912 | 3996 | 225 |
| Mercedes Benz M-CLASS (W164) ML 450 CDI 4-matic (164.128) | 2009-2011 | OM 629.912 | 3996 | 225 |
| Mercedes Benz M-CLASS (W164) ML 500 4-matic (164.175) | 2005-2011 | M 113.964 | 4699 | 225 |
| Mercedes Benz M-CLASS (W164) ML 550 4-matic (164.172) | 2007-2011 | M 273.963 | 5461 | 285 |
About Air Suspension Air suspension system, mainly composed of air spring and shock absorbers barrel core, it and the traditional mechanical suspension is different lies in the support of the vehicle spring. In the air suspension assembly, the spring is an air spring, while the traditional suspension is a regular spring. The former can adjust the hardness and height of the air spring according to the state of the road through the car computer. Advantages 1, improve the ride comfort of the vehicle;
2, improve the stability of vehicle driving control;
3, enhance the vehicle driving power and braking force on bumpy road;
4, the body height remains the same, will not increase or decrease with the load, reduce or increase;
5, prolong the service life of tires and brake discs;
6, reduce electrical, air conditioning, exhaust system, bridge, body and chassis maintenance costs;
7, prolong the service life of the vehicle and increase the depreciation value.
Its biggest advantage is that it can not only increase the stability of high-speed body or the passability of complex road conditions, improve the ride comfort of passengers, but also play an important role in road protection.
Generally speaking, equipment type adjustable air suspension vehicle front and rear wheels will be equipped with distance from the ground near the sensor, according to the distance from the earth sensor output signal, the driving computer can judge the body height change, to control the air compressor and the exhaust valve, make the spring automatic compression or elongation, so as to reduce or increase the chassis ground clearance, Increase the stability of high-speed body or the passability of complex road conditions.
