W01-358-6902,Convoluted Type Air Suspension Spring Bags For Hendrickson S2630
Product Specification
| Item | Value |
| OEM.NO. | W01-358-6902 |
| Type | Air Spring |
| Warranty | 12 Months |
| Truck Model | Heavy Duty Truck |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts |
| Application | Auto Suspension Systems |
Product Parameters
OEM NO.
Firestone: W01-358-6902,W013586902,W01 358 6902
Contitech: FD 200-19 310
Goodyear :2B9-201
Taurus:KF218-6902
Manufacturer No.
Granning:4848
Hendrickson : S2630
R&S Truck: 1027505
Ridewell :1003586902C
Suspensions: 2000-42
Watson&Chalin: AS-0002
American Carrier
W01-358-6902 Firestone Double Convoluted Air Spring Data
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Gas Hole / Air inlet:1/4NPTF
Rubber Bellows Natural Diameter:224mm
Rubber Bellows MAX Diameter:251mm
The Working Stroke:MAX 274 mm to MIN 95 mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Top Cover Plate:89mm
Screw Center Distance of Bottom Cover Plate:89mm
Screw And Gas Hole Distance of Top Cover Plate:44.5mm
Firestone Bellow Number 20
| Firestone Part Number W01-358-7892 |
| Firestone Part Number W01-358-7795 |
| Firestone Part Number W01-358-7686 |
| Firestone Part Number W01-358-6949 |
| Firestone Part Number W01-358-6941 |
| Firestone Part Number W01-358-6940 |
| Firestone Part Number W01-358-6935 |
| Firestone Part Number W01-358-6932 |
| Firestone Part Number W01-358-6908 |
| Firestone Part Number W01-358-6905 |
| Firestone Part Number W01-358-6897 |
| Firestone Part Number W01-358-6884 |
| Firestone Part Number W01-358-6856 |
| Firestone Part Number W01-358-6926 |
| Firestone Part Number W01-358-6910 |
| Firestone Part Number W01-358-6900 |
| Firestone Part Number W01-358-6890 |
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
Packing & Delivery
Package:Strong Brown Carton Box Or As Customers Need
Shiping:1.By Sea, By Air, By DHL Fedex
2.Delivery time is 2-8 working days.

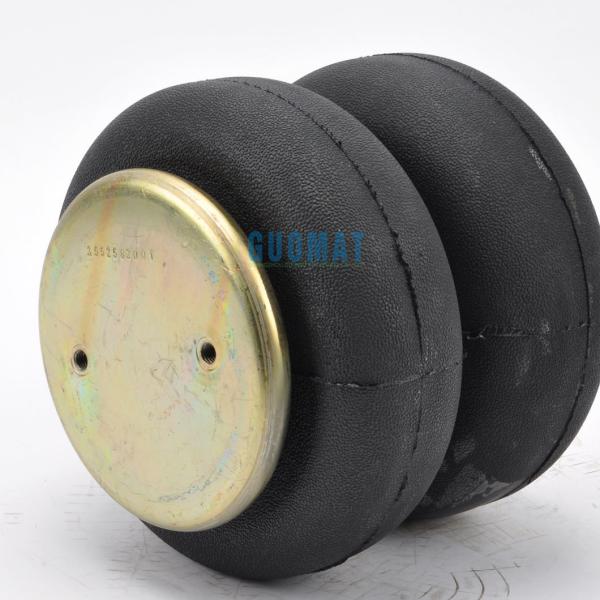

Detailed Photos
