W01-358-7431 Firestone Rubber Air Bellow W013587431 Double Convoluted Type Air Shock
Product Details
| Product Name | Industrial Air Spring |
| Model No. | 2H7431 |
| Brand | GUOMAT |
| Warranty | 1 Year |
| Material | Rubber+Steel |
| With Flange | Yes |
| Firestone | W01-358-7431 |
| Firestone | W013587431 |
| Firestone | W01 358 7431 |
| Firestone | WO13587431 |
| Firestone | WO1 358 7431 |
| Firestone | WO1-358-7431 |

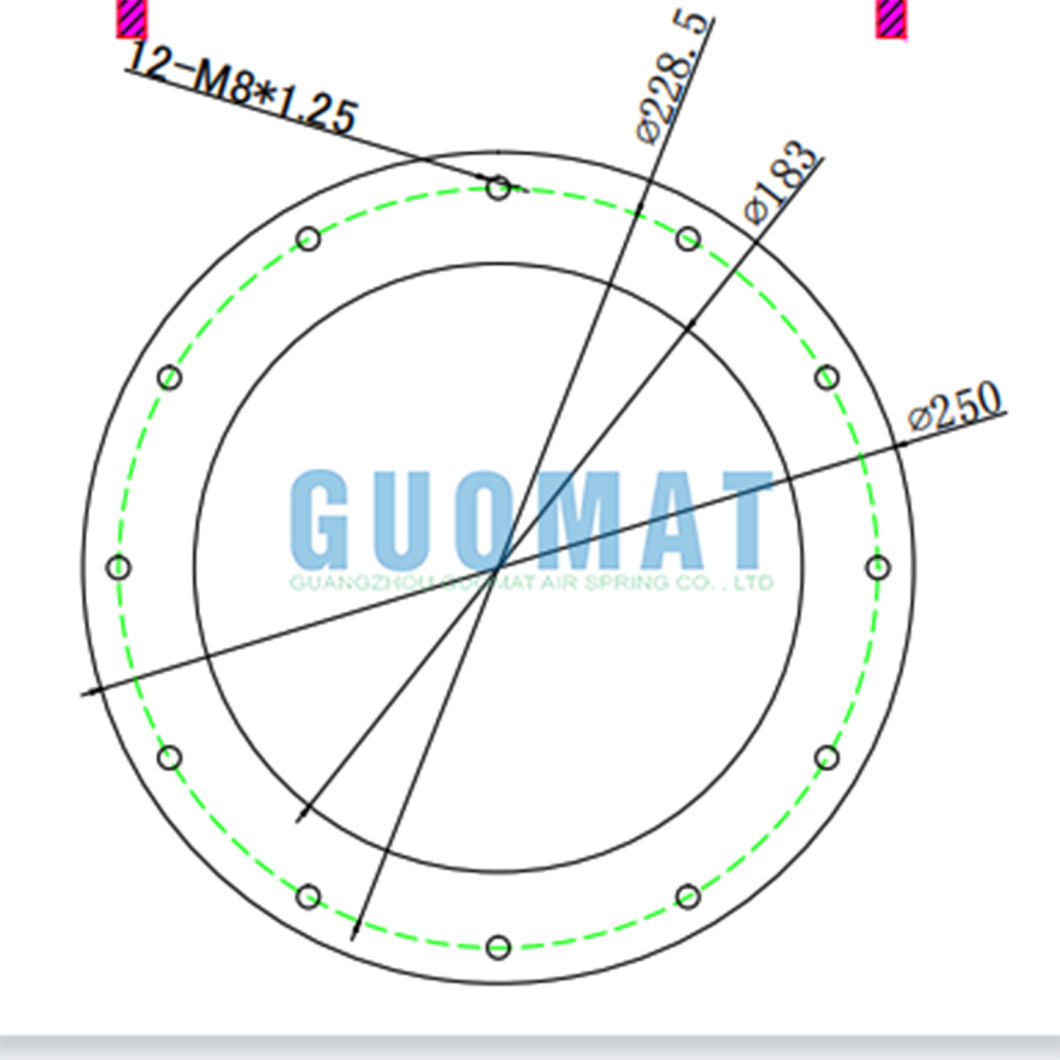

W01-358-7431 Firestone Industrial Air Spring Technical Data
| Cover Plate Diameter | Ø250mm |
| The Screw/Nut on Top | 12pcsxM8x1.25 |
| Screw/Nut Height | 25mm |
| The Center Distance Between the Screws | Ø228.5mm |
| Nominal Diameter | Ø183.05mm |
| The Screw/Nut on Bottom | 12pcsxM8x1.25 |
| Rubber Bellows Diameter | Ø301mm |
| The Height | 193mm |
| Description | Assembly Order No. |
| Style 22 | Blind nuts,1/4 NPT | W01-358-7180 |
| Blind nuts,1/4 NPT,bumper | W01-358-7400 |
| Two Ply Bellows | Blind nuts,3/4 NPT | W01-358-7184 |
| Blind nuts,3/4 NPT,bumper | W01-358-7185 |
| Countersunk steel bead rings,1 5/8 bolts,nuts,washers | W01-358-7431 |
| Rubber bellows only | W01-358-0226 |
Same Type Flange Air Spring
Style 116, W01-358-7568
Style 117, W01-358-7606
Style 115, W01-358-7469
Style 19, W01-358-7023
Style 19-.75, W01-358-6896
Style 113, W01-358-7110
Style 113-1, W01-358-7211
Style 224, W01-358-3407
Style 26, W01-358-7333
Style 274, W01-358-6923
Style 20-2, W01-358-7789
Style 22, W01-358-7431
Style 210, W01-358-7258
Style 22-1.5, W01-358-7480
Style 21, W01-358-7139
Style 205, W01-358-7237
Style 21-2, W01-358-9531
Style 233-2, W01-358-7558
Style 313, W01-358-7801
Style 39, W01-358-1099
Style 333, W01-358-7830
Every Standard Air Spring Consists of 4 Layers
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Industrial Air Spring Problem Solutions
GATE VALVE OPERATOR
GLUING PRESS
WEB TENSIONING DEVICE
DIE STRIPPER
KNIFF SPRING ACTUATOR
QUENCH TANK ACTUATOR
PAPER SIZING PRESS
PICKLING TANK ACTUATOR
QUICK LOCK DEVICE
PRESSURE ROLL FOR CALENDER
MISSILE ASSEMBLY FIXTURE
CORE STRAIGHTENER
BELT TAKE UP
ROLLER FRICTION BRAKE
PIPE INDEXING THREADING
OSCILLATING DOCTOR FOR PAPER CALENDER ROLL
FORMING PRESS
CABLE TENSIONING DEVICE
BAD FLATTENER
TORSIONAL FRICTION BRAKE
HOT FOIL STAMPING PRESS
ACTUATED HEAVY DUTY SEALER
PIVOTED CLAMPING DEVICE
AIRSTROKE ACTUATED ROLLER STOP
HINGED ACTUATED GRAVITY GATE
VERTICAL ACTUATED DRIVE TABLE
SCISSOR LIFT
CASE PACKER
CONVEYOR TRANSFER ACTUATOR
