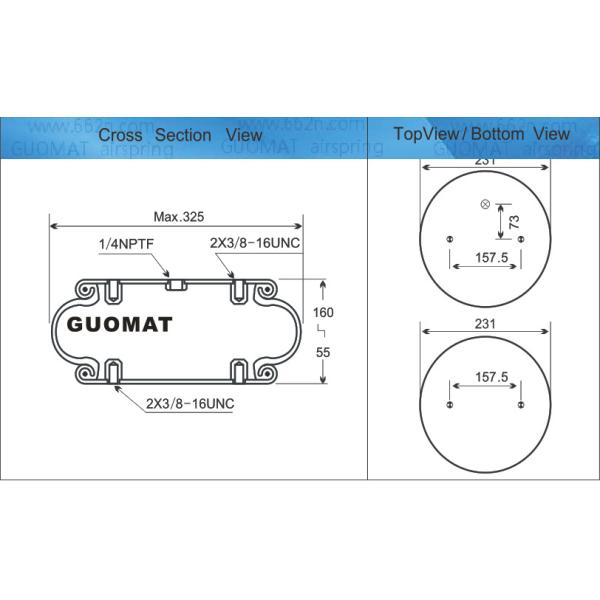

Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring The detailed Specifications and techical data | The Max. Diameter | 325mm |
| Air hole/air inlet | 1/4 N P.T.F. |
| Working stroke | maximum 160 mm to minimum 55 mm |
| Top plate screw (nut) teeth | 2 x 3 / 8-16UNC |
| Bottom plate screw (nut) teeth | 2 x 3 / 8-16UNC |
| Top cover diamete | 9.00 inches / 231 mm |
| Bottom cover diameter | 9.00 inches / 231 mm |
| Screw center distance | 157.5 mm |
| The air hole distance between the nuts | 73 mm |
The competitive advantage of the product
1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.
2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.
Cross Reference Numbers
| Firestone Style | Style 19 |
| Firestone OEM Number | W01-358-7008,W01 358 7008,W013587008 |
| Firestone OEM Number | WO1-358-7008,WO1 358 7008,WO13587008 |
| Contitech OEM Number | FS 330-11 474,FS330-11474 |
| Goodyear OEM Number | 1B12-300,1B 12-300,1B12 300 |
| Goodyear OEM Number | 1B12-313,1B 12-313,1B12 313 |
| Triangle OEM Number | 6374/4474 |
| Holland(Neway) | 90557226 |
How to Install Air Springs?
Installation method:
1. When installing, the position of the compressed gas spring piston rod must be downward to reduce friction and ensure the best damping quality and buffering performance.
2. When installing the compressed gas spring, it must be installed in the correct way. When closing, it moves across the center line, otherwise the door will often be pushed open.
Precautions:
1. Before determining the installation position, the selection of gas springs should first be based on the model and specifications in the manual.
2. Gas springs should not be subject to tilting or lateral forces during work.
3. The piston rod is not painted, and it is not allowed to install the gas spring in the desired position first and then spray or paint it.
4. Gas springs are high-pressure products, please do not dissect them at will.
5. It is strictly forbidden to burn or smash the gas spring.
6. Gas spring piston rod, do not rotate to the left
